IKE has 30 years of experience in PABX production and development.

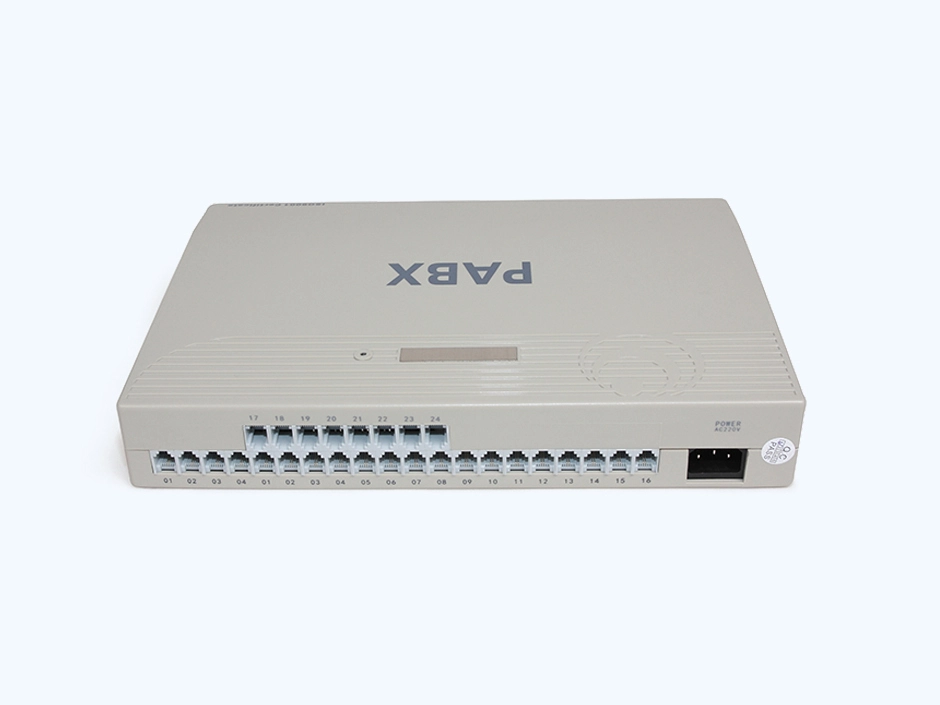

8 16 24 32 Lines Analog PABX Phone System TC-2000AC Factory Price
5.0
Type:
Pabx
Application:
Office
Certificate:
IS09000/CE/ROHS
Material:
Plastic
Color:
Greyish-white
CO.Line:
2~4
Extensions:
8~32
OGM record time:
15s
Warranty:
1 Year
Dimension:
32cm（L)x22cm（W）x5cm（H)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT SPECIFICATION
Product Parameters
Product Specification
Feature
Feature2
| Item | Patameter |
| Power | AC110V or AC220V 50-60Hz |
| Feed Currency | DC48V; 25mA |
| Ringing Currency | AC65v/50Hz |
| DISA | 60second, 3-duration, 30s-15s-15s |
| Communication Path | 15 |
| Extension Number Length | 2 to 4 digits |
| Caller ID | * Receive: Auto Adapt DTMF, FSK (Bell.202) |
| * Send: FSK (Bell.202) | |
| Dial Mode | DTMF |
| Degree of Unbalance | * 300Hz~600Hz≤40dB |
| About Earth | * 600Hz~3400Hz≤46dB |
| Transmission Attributes | * Extension to extension ≤1.5dB |
| * Extension to extension ≤2.0dB |
| 2000BCW | Incoming CO Line | Local Station(Extension) | Expandable or not |
| Capacity | 8/16 | 32,40,48...128 | Yes |
| Receiving Call Feature | Making Call Feature |
| * DISA Auto-attendant | * Dial 0 or 9 for CO Line |
| * Operator Attendant | * Select Desired CO Line |
| * Call Transfer | * Least Cost Routing |
| * 3-party Conference Call | * IP Code Access Automatically |
| * Busy Transfer | * Extension Password |
| * Unconditional Transfer | * Personal Account |
| * Call Transferred to Secretary | * Hot Line ( call to operator without dialing) |
| * Call Pick Up | * Ringback on Busy ( when Ext.becomes free) |
| * External and Extension Caller ID | * Speed Dialing |
| * Transferred Caller ID | * Extension Outgoing Call Class |
| * Do Not Disturb(DND) | * Outside ( CO ) Line Duration Time Limit |
| * Day/Night Service | * Dial 9 or 0 to Operator |
| * Extension Ring by Turns | * Exclusive Line |
| * Outside Caller Call Extension by One Touch | * Allow Extension use Appointed CO Line |
| * Call on Holding | * Extension Lock |
| * External Music on Hold Socket | |
| * Twenty-four Extension Ringing Assignable |
| System Feature | Optional Feature |
| * Self-extension Number Confirmation | * UK/US/AU/EUR Power Plugs |
| * Pulse and Tone Mode Setting | * 110V or 220V Power Supply |
| * Power Failure Transfer | |
| * Bill, Hotel Software, Function Program by PC | |
| * Total 60s OGM | |
| * Remote Program | |
| * Executive Busy Override | |
| * Extension Number Assignable Freewill | |
| * Polarity Reverse Detection (for billing) |
COMPANY STRENGTH
01
Call Transferring
02
Party Conference
03
Busy transferred
04
External and internal callerID
05
Operator/Auto attendant
06
Call picked up by non-ring extension
07
Twin routes 3section OGM(DISA)
08
Outside（CO）Line DurationTime Limit
09
Extension number assignablefreewill
Out going Message(OGM) For Auto-Attendant Service
OGM 1:
This is ABC comany, for the sales division press 8001; for the Aftermarket division,press 8003....to call operator, press 0”.
OGM 2:
“Sorry the extension you daled is busy please dial another extension or dial O for operator".
OGM 3:
Sorry the extension you dialed is not answering,please dial another extension,or dial O for the operator".
PC software program
图片1 (3)
Detailed display
2_副本
AC black color (3)
侧 (2)
侧2 (2)
后 (2)
正背面
正前1
3 (8)
