IKE has 30 years of experience in PABX production and development.

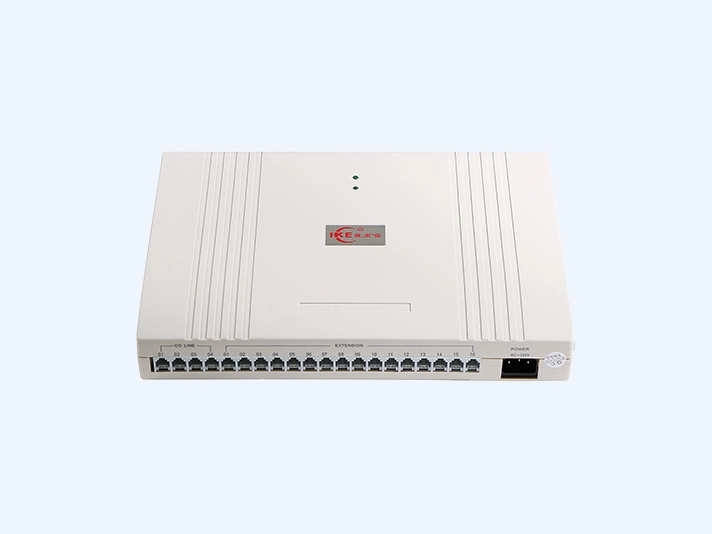

Pabx 208 416 424 432 Group Telephone System Switch Board
5.0
Type:
Pabx
Application:
Office
Certificate:
IS09000/CE/ROHS
Material:
Plastic
Color:
Greyish-white
CO.Line:
2~4
Extensions:
8~32
OGM record time:
15s
Warranty:
1 Year
Dimension:
32cm（L)x22cm（W）x5cm（H)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
PRODUCT SPECIFICATION
Product Parameters
Product Specification
| Item | Patameter | ||
| Power | AC110V or AC220V 50-60Hz | ||
| Feed Currency | DC48V; 25mA | ||
| Ringing Currency | AC65v/50Hz | ||
| DISA | 15 Second | ||
| Communication Path | 7 | ||
| Extension Number Length | 2 to 4 Digits | ||
| Caller ID | * Receive: Auto Adapt DTMF, FSK (Bell.202) | ||
| * Send: FSK (Bell.202) | |||
| Dial Mode | DTMF | ||
| Degree of Unbalance | * 300Hz~600Hz≤40dB | ||
| About Earth | * 600Hz~3400Hz≤46dB | ||
| Transmission Attributes | * Extension to Extension ≤1.5dB | ||
| * Extension to Extension ≤2.0dB |
| TC-2000P | Incoming CO Line | Local Station(Extension) | Expandable or not |
| Capacity | 2,3, 4 | 8,12,16,24,32 | No |
COMPANY STRENGTH
01
Call Transferring
02
Party Conference
03
Busy transferred
04
External and internal callerID
05
Operator/Auto attendant
06
Call picked up by non-ring extension
07
Twin routes 3section OGM(DISA)
08
Outside（CO）Line DurationTime Limit
09
Extension number assignablefreewill
Out going Message(OGM) For Auto-Attendant Service
OGM 1:
This is ABC comany, for the sales division press 8001; for the Aftermarket division,press 8003....to call operator, press 0”.
OGM 2:
“Sorry the extension you daled is busy please dial another extension or dial O for operator".
OGM 3:
Sorry the extension you dialed is not answering,please dial another extension,or dial O for the operator".
